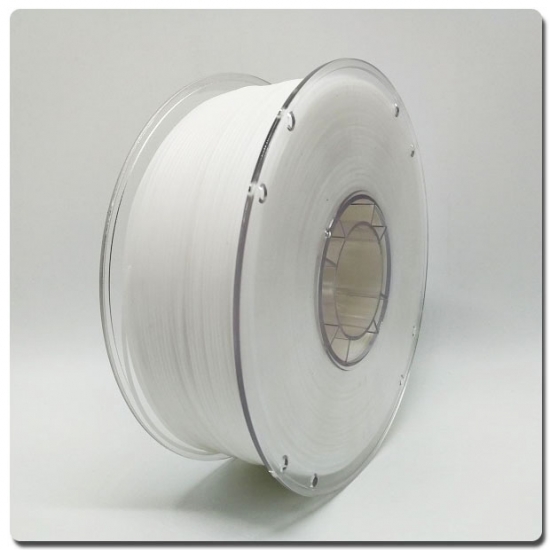

CONTACT USProduct Item: HIPS; High Impact Polystyrene 3D Printer Filament
FEATURES
HIPS is a modified material by adding butadiene to polystyrene. Its characteristics are easy to process, high dimensional stability, high impact strength and low cost. In 3D printing, since HIPS dissolve in limonene, it is most commonly used as supporting material to replace expensive PVA material.
MATERIAL PROPERTIES
| MATERIAL DATA SHEET | ||
| HIPS | Unit | |
| Base Material | HIPS | n/a |
| Diameter | 1.75//2.85 | mm |
| Diameter Tolerance | ±0.02/±0.03 | mm |
| Specific Gravity | 1.04 | g/cm3 |
| Tensile Strength | 230 | kg/cm2 |
| Impact Strength | 11 | KJ/m2, Izod |
| Surface | Matte | n/a |
| Transpancy | Opaque | n/a |
| Processibility | Fair | n/a |
| The data are intended as general guide only and do not necessarily represent results that may be obtained elsewhare. | ||
PRINTING PARAMETERS
| SUGGESTED PRINTING PARAMETERS | ||
| Filament Type | HIPS | |
| Printer Type | Cartesian/Delta | |
| Extruder Type | Direct Drive/Bowden Tube | |
| Layer Height | 0.1~0.3 | mm |
| Fill Density | 0~100 | % |
| Shell Thickness | >0.6 | mm |
| Print Speed | 30~80 | mm/s |
| Printing Temperature | 190~210 | °C |
| Build Bed Temperature | 50~80 | °C |
| Retraction Speed | 30~50 | mm/s |
| Retraction Distance | 3~10 | mm |
| Cooling Fan | YES | |
