Product Detail

Product Item: ABS; Opaque ABS 3D Printer Filament

FEATURES

1. High impact strength; great for mechanical parts fabrications.
2. Higher temperature resistant.
3. Good post-printing processibility.
4. Recommended for experienced users.
5. Opaque, matte surface.

MATERIAL PROPERTIES

MATERIAL DATA SHEET
ABS		Unit
Base Material	ABS	n/a
Diameter	1.75//2.85	mm
Diameter Tolerance	±0.02/±0.03	mm
Specific Gravity	1.05	g/cm3
Tensile Strength	47	Mpa
Impact Strength	19	KJ/m2, Izod
Surface	Matte	n/a
Transpancy	Opaque	n/a
Processibility	Good	n/a
The data are intended as general guide only and do not necessarily represent results that may be obtained elsewhare.

PRINTING PARAMETERS

SUGGESTED PRINTING PARAMETERS
Filament Type	ABS
Printer Type	Cartesian/Delta
Extruder Type	Direct Drive/Bowden Tube
Layer Height	0.1~0.3	mm
Fill Density	0~80	%
Shell Thickness	>0.6	mm
Print Speed	20~60	mm/s
Printing Temperature	240~250	°C
Build Bed Temperature	80~100	°C
Retraction Speed	30~50	mm/s
Retraction Distance	3~10	mm
Cooling Fan	YES

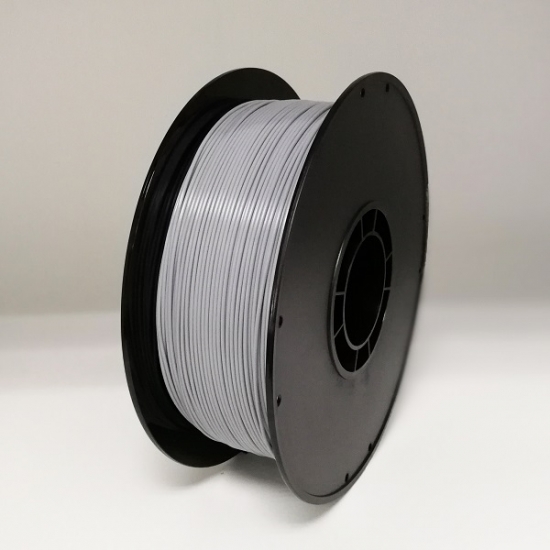

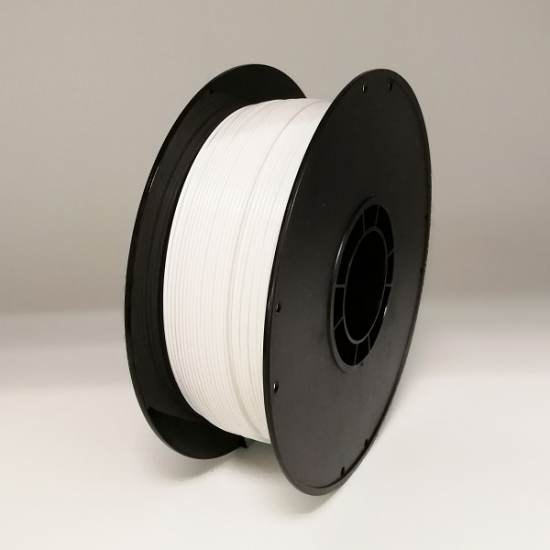

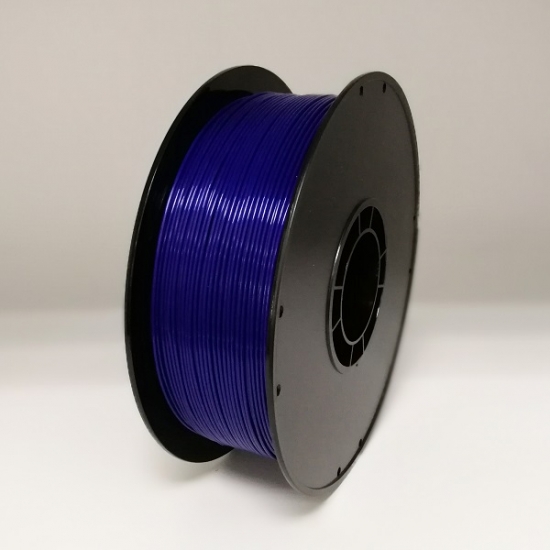

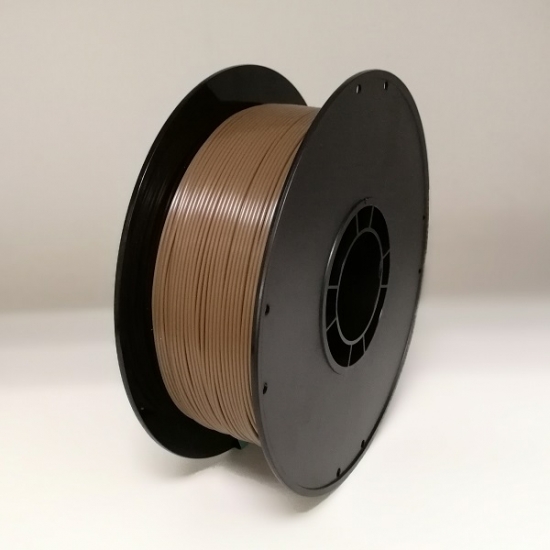

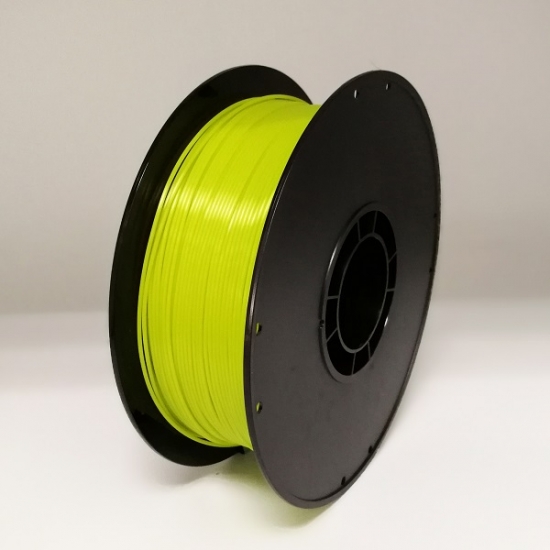

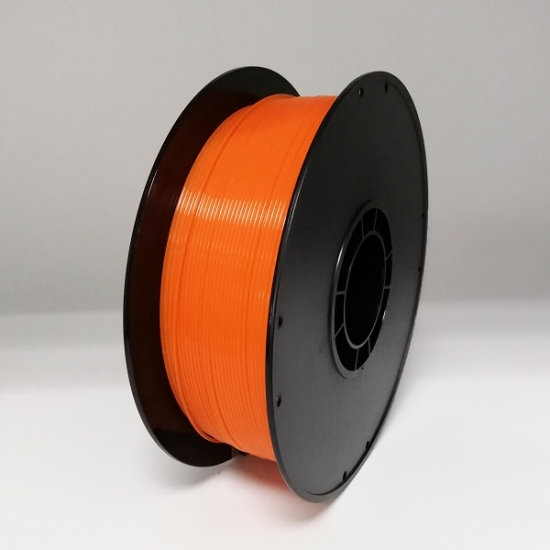

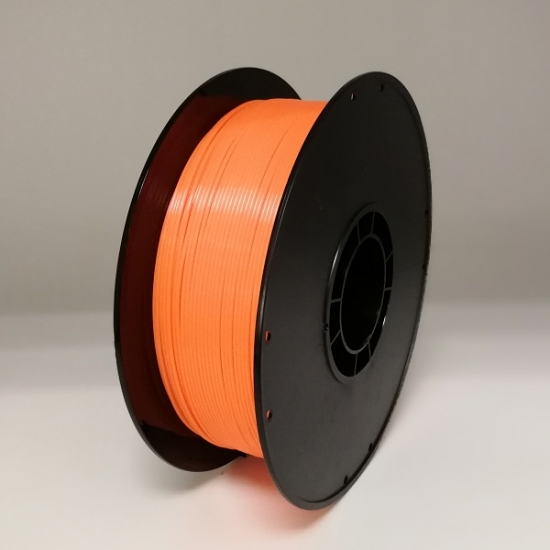

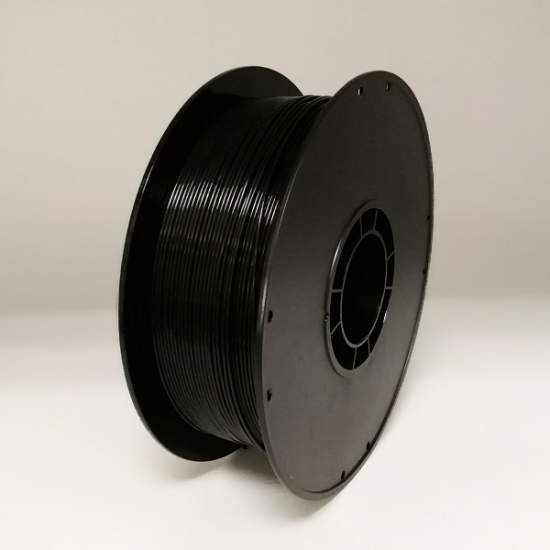

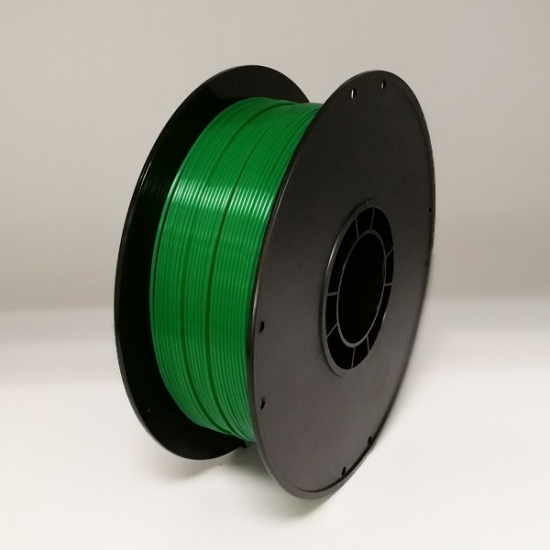

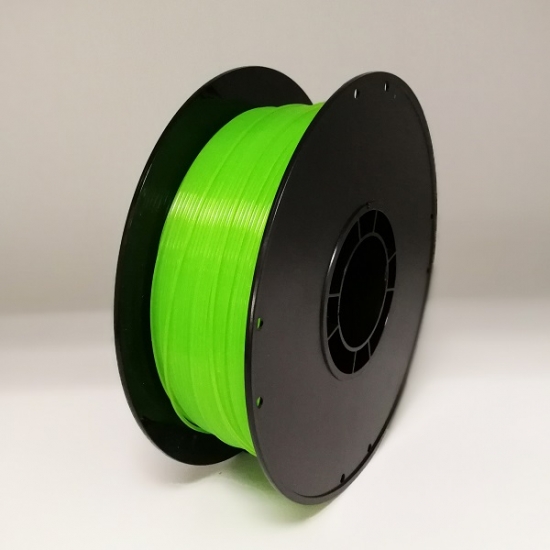

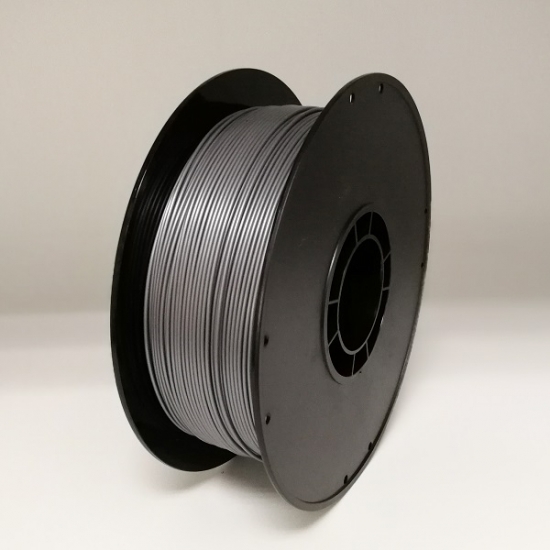

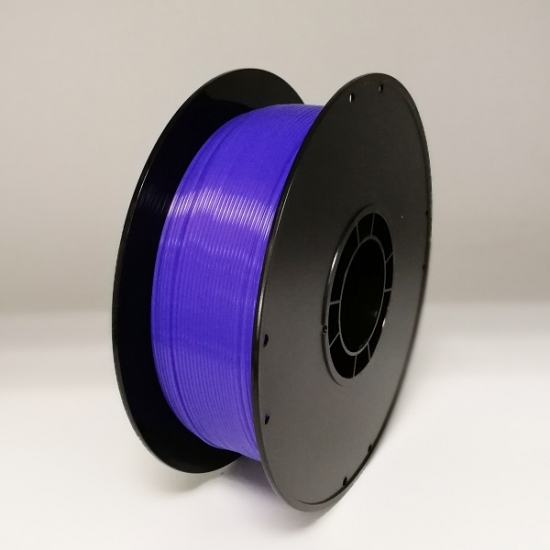

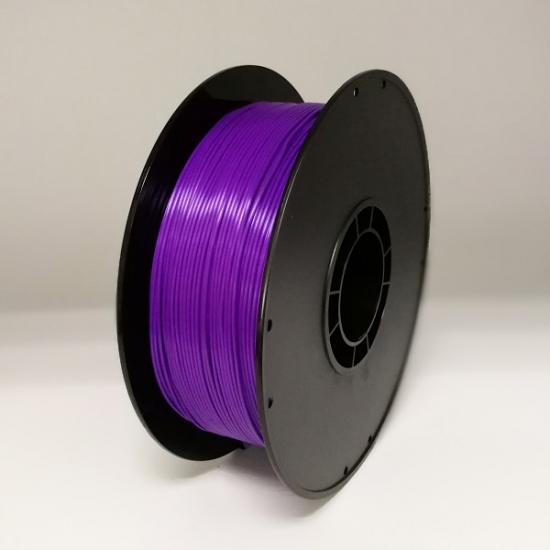

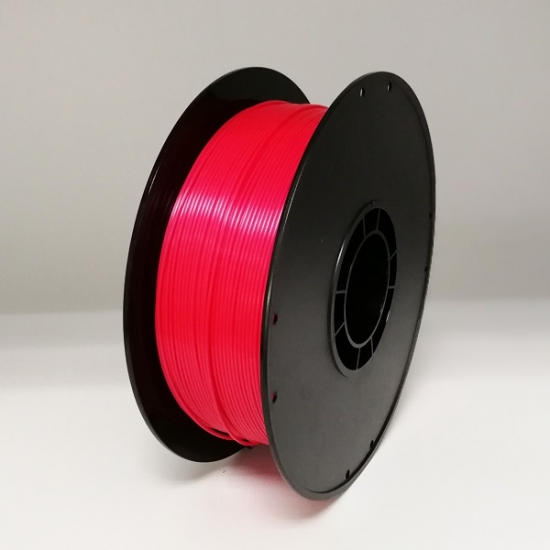

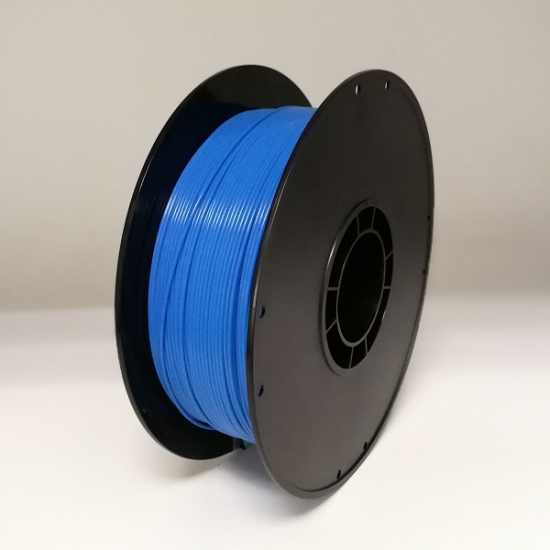

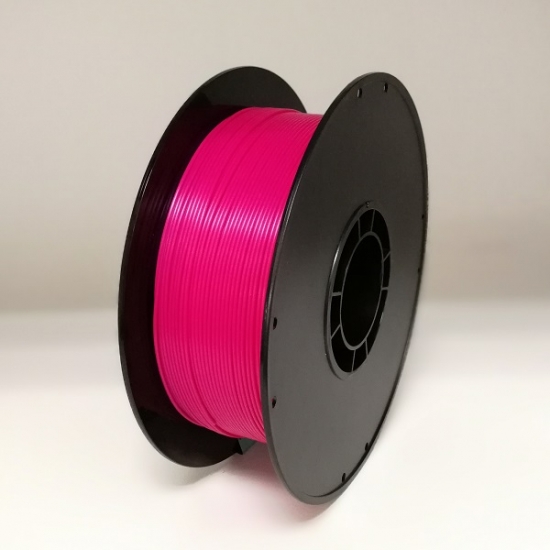

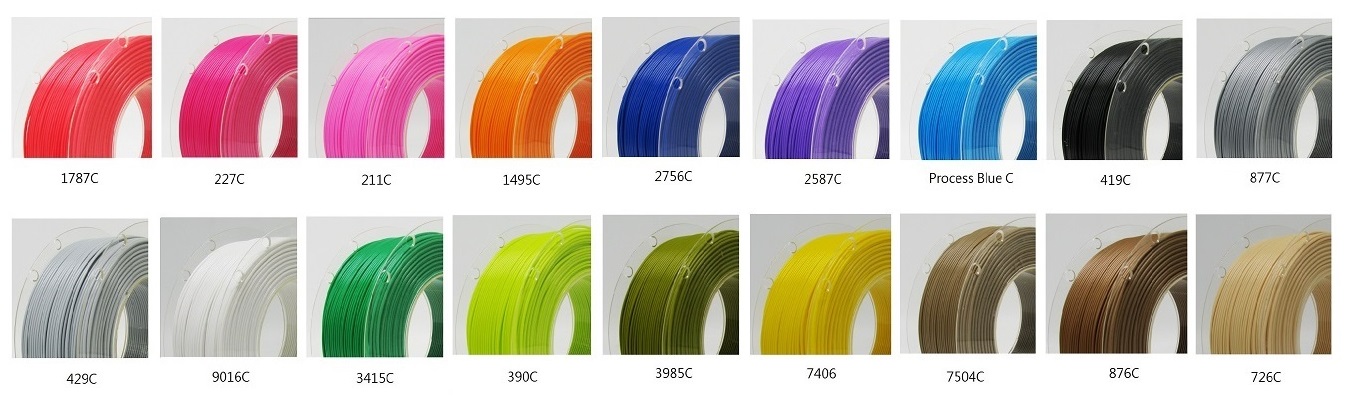

COLORS AVAILABLE
